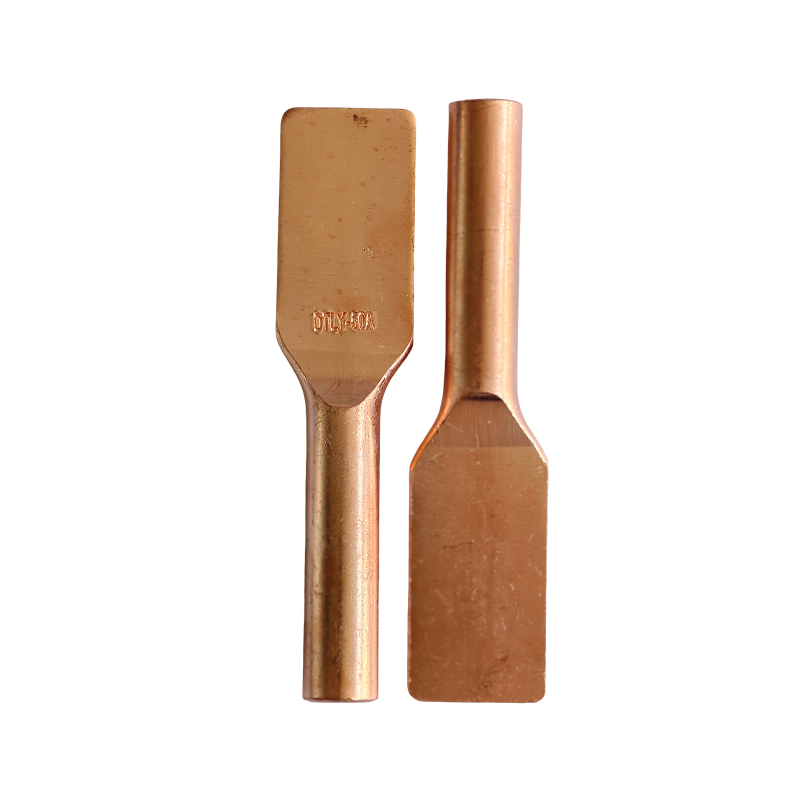

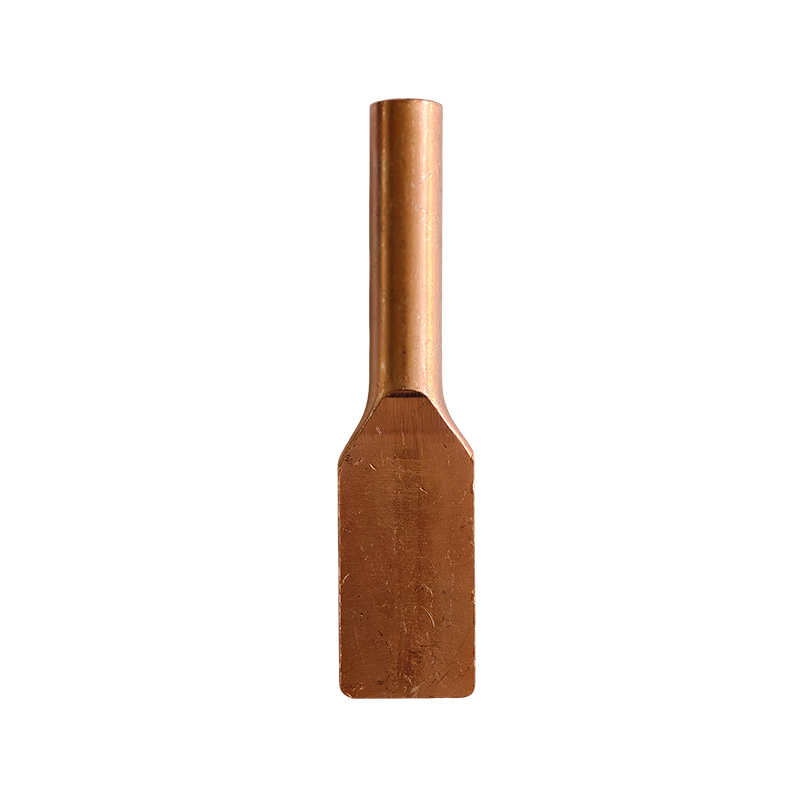

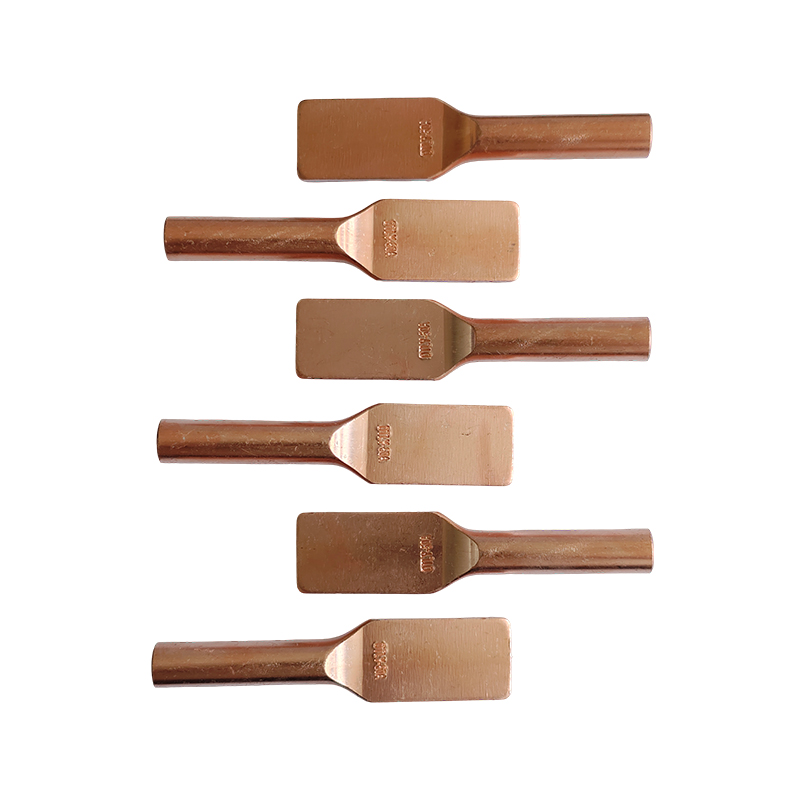

New Copper-Aluminum Transition Clamp DTLY-50A

Main Performance

Product model and name: DTLY-XXX-A, DTLY-XXX-B type integrated copper-aluminum transition terminal.

Suitable conductor range: 50-1000 mm ².

The integrated copper-aluminum transition wiring terminal is integrally formed by cold extrusion and forging of the T2 red copper rod, so that the compactness and the structural strength of the material are effectively enhanced, and the problem that the copper-aluminum transition wiring terminal is broken in the use process of high-voltage line equipment can be avoided on the premise that the structural strength is greatly improved. By adopting the process of processing the V-shaped groove on the inner wall of the copper lining sleeve and the integrated forming technology of high-pressure die-casting, aluminum melting and welding, the contact surface of the wire clamp and the wire has no gas cavity, the contact area of copper and aluminum is greatly improved, the connection resistance can be effectively reduced, the conductivity is improved, and the conductivity and connection performance of the wire clamp are greatly improved, so that the long-term safe and stable operation of the high-voltage line is effectively guaranteed.

The main operating parameters of the integrated copper-aluminum transition terminal are shown in the following table:

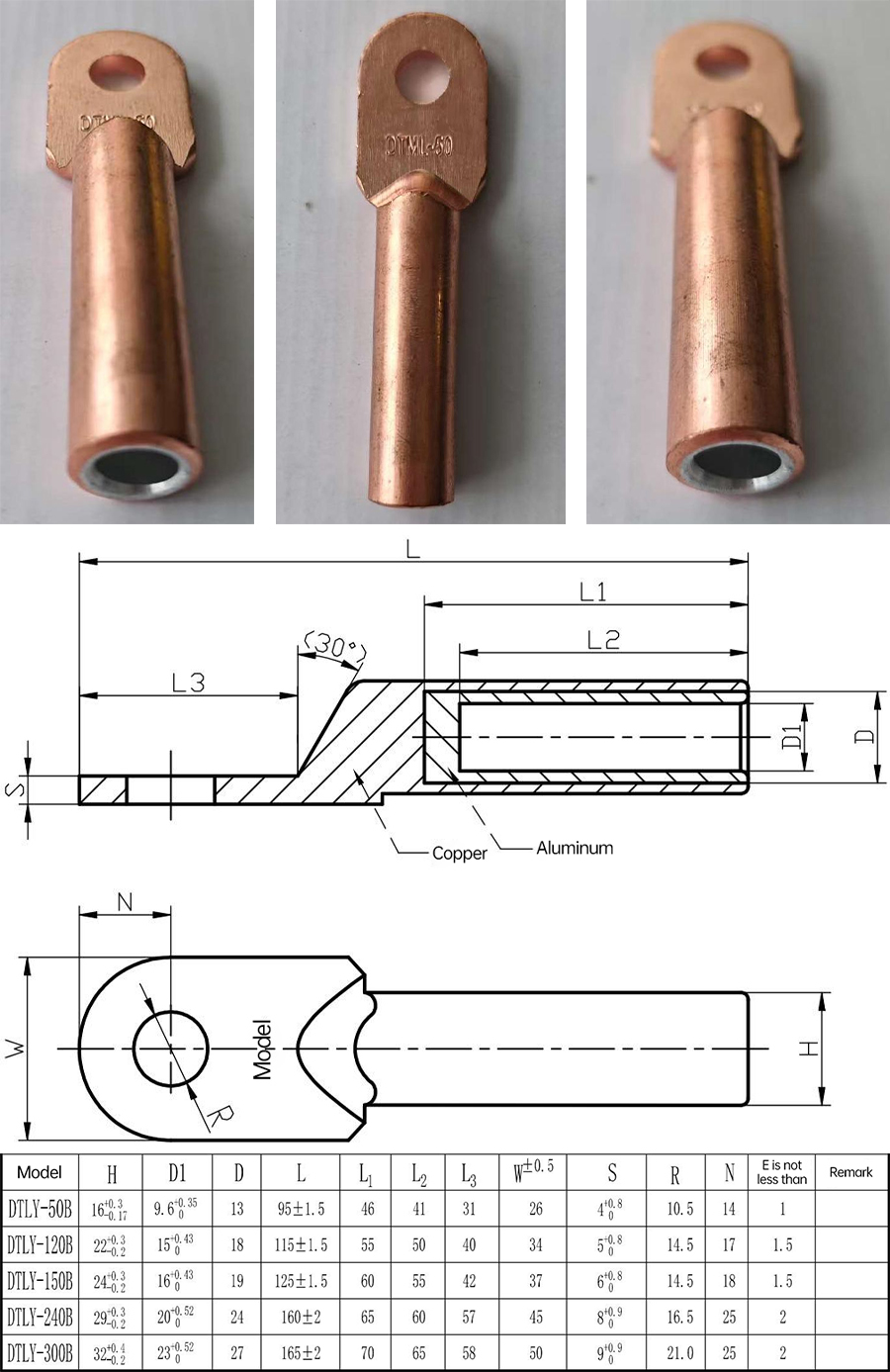

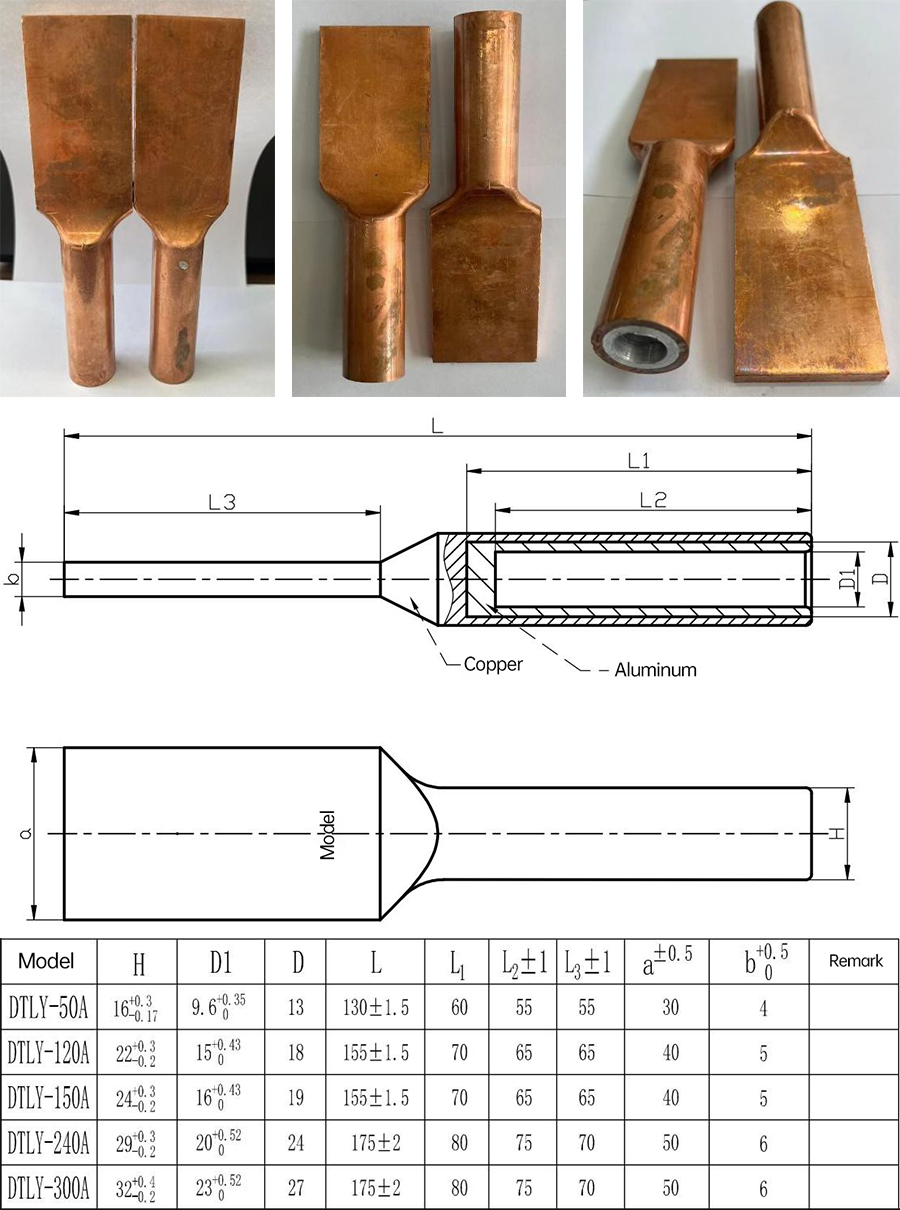

Table 1 Main Operating Parameters of Integrated Copper-Aluminum Transition Terminal

DTLY-XXX-A type integrated copper-aluminum transition terminal block

DTLY-XXX-B type integrated copper-aluminum transition terminal block

Completeness of Product Support

The main components, auxiliary materials and consumable materials of the product are complete, and the variety and quantity meet the installation requirements.

The main parts, auxiliary materials and consumable materials of the product have good compatibility and the same quality standard, and all performance parameters meet the technical requirements of the annex.

Acceptance Rules

The products are tested in accordance with the relevant provisions of relevant standards.

The products are inspected by the quality inspection department of our company before they leave the factory, and each product is accompanied by a certificate of inspection.

Packaging, Marking, Storage and Transportation

The products shall be packed separately and protected from rain and moisture.

Each set of products has information such as product model and name, voltage level, manufacturer and so on.

Each set of products has a detailed packing list of materials, and the accompanying technical documents are packed in plastic bags.

The product shall be protected from heavy pressure and violent collision during transportation.

The product storage place shall be dry and ventilated.
